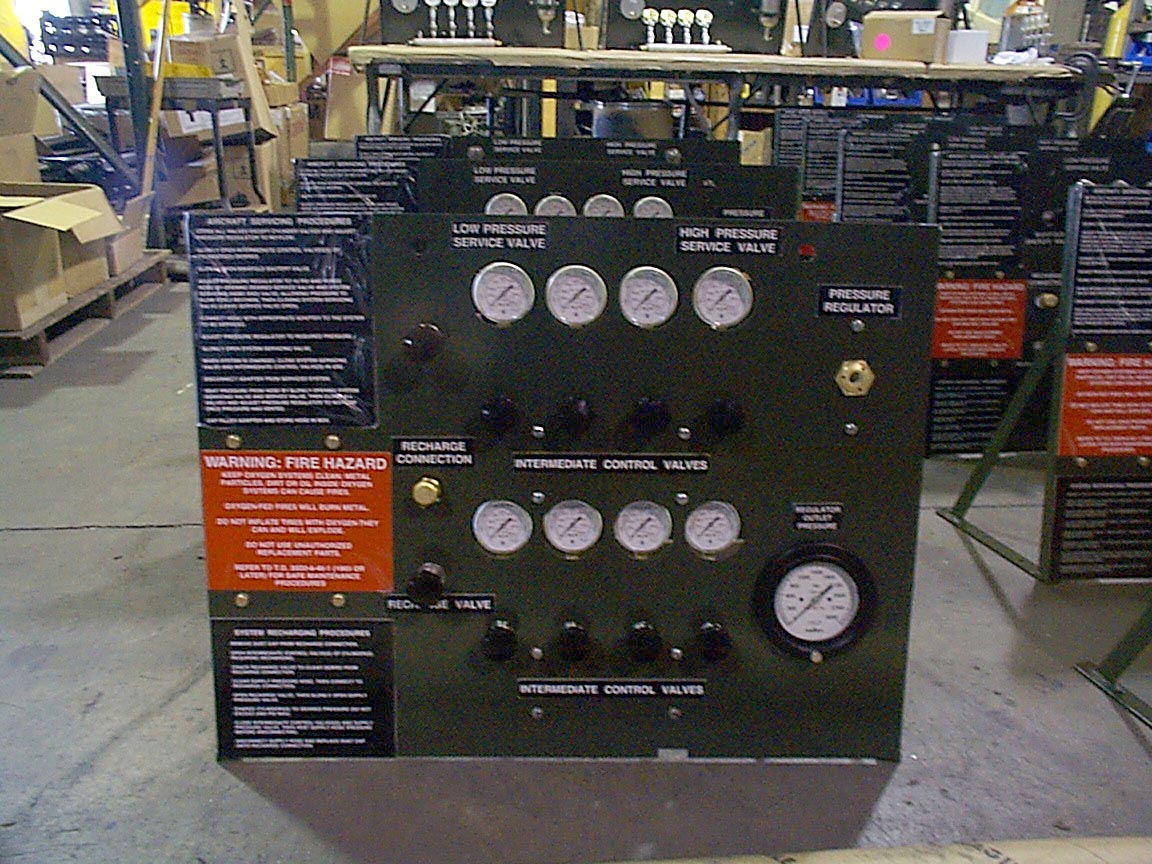

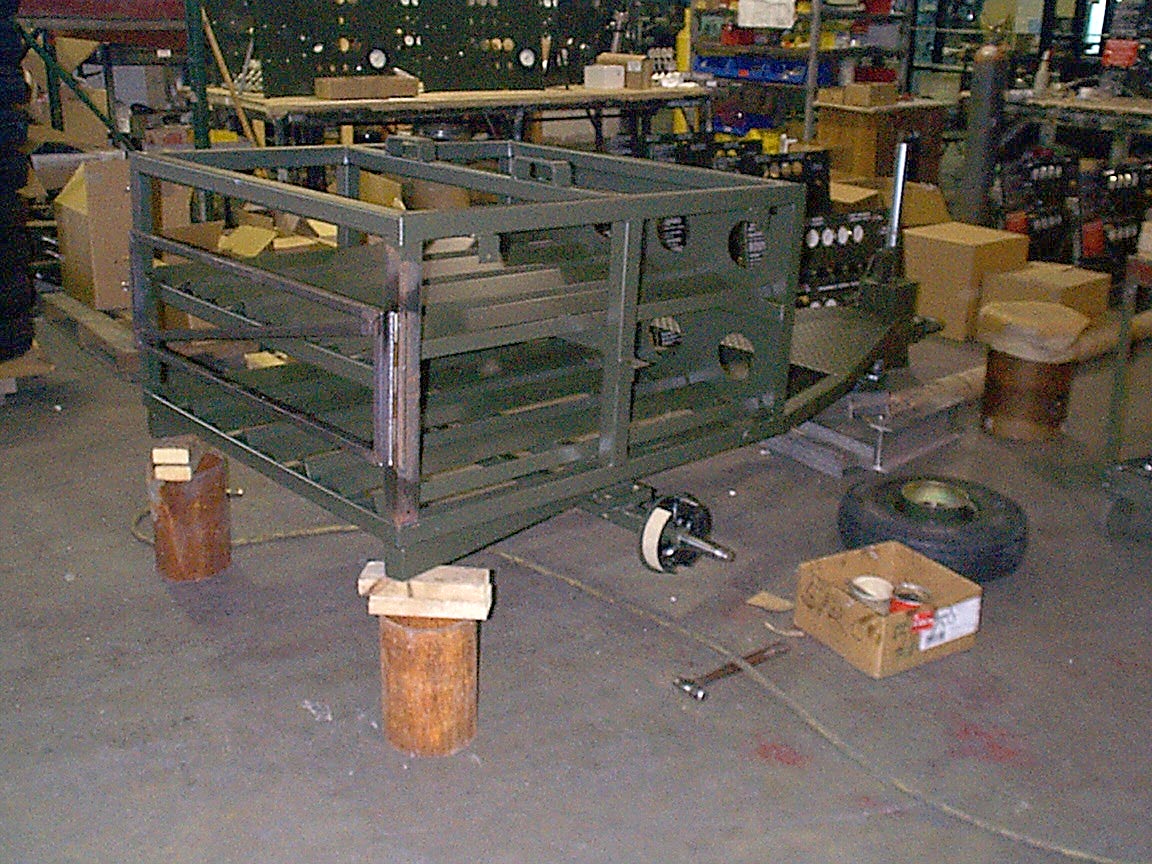

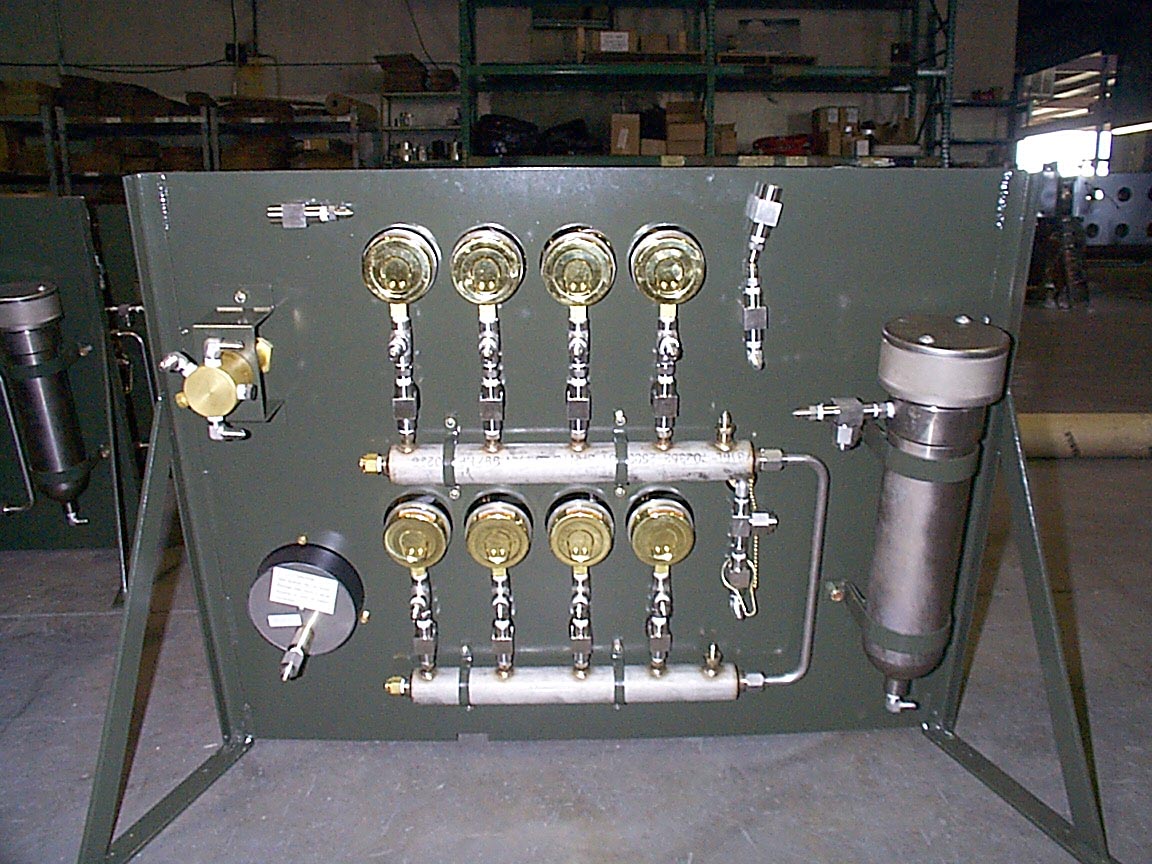

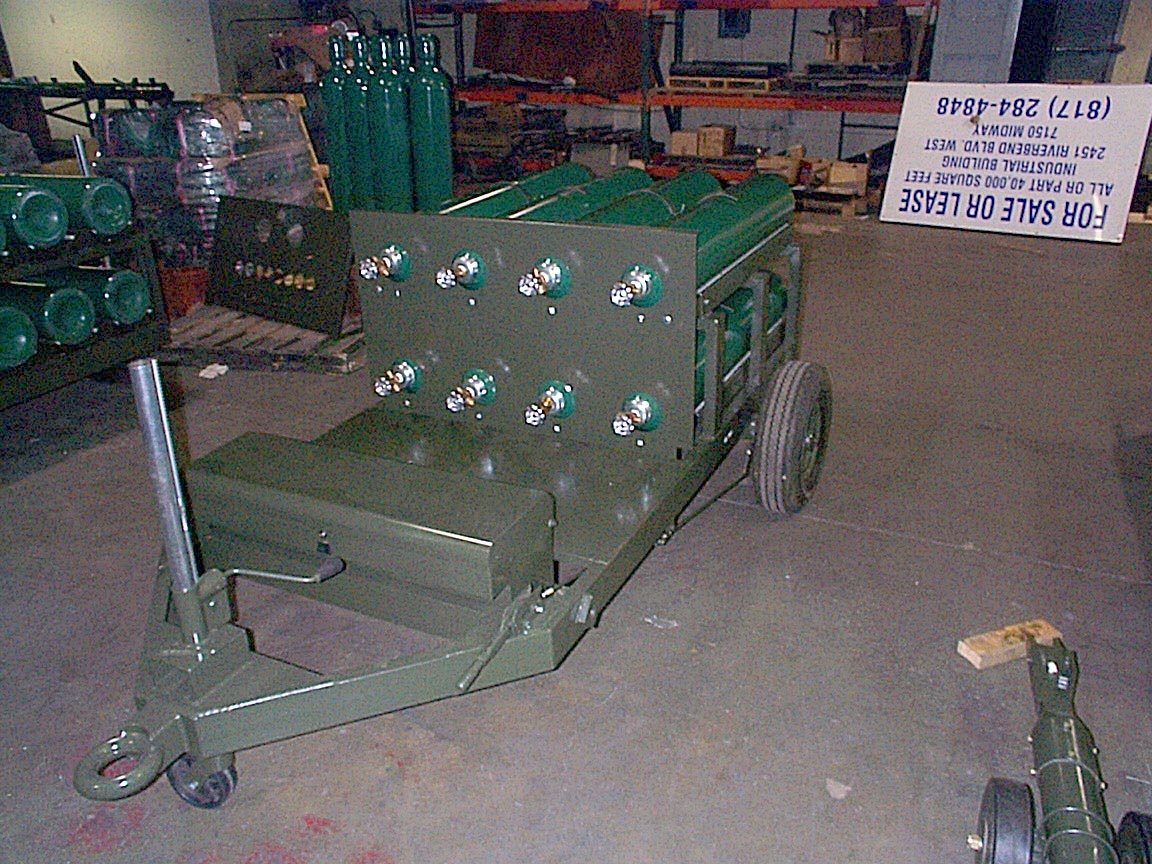

Oxygen Servicing Trailer
Part Number: 1590
NSN: 3655-01-435-4420

Dimensions:

Shipping Weight (without cylinders) 700 lbs.
Overall Length 117 1/2 in.
Overall Height 44 in.
Overall Width 62 1/2 in.
Shipping Cubage 225 cu. ft.
Axle Load (empty) 635 lbs.
Lunette Load (empty) 65 lbs.
Distance From Front of Trailer to Front Tie-Down 35 in.
Distance From Rear of Trailer to Rear Tie-Down 6 1/2 in.
Distance of Tie-Down Ring Point From Ground 14 3/4 in.
Center of Gravity: Distance From Front of Trailer 86 in.
Wheel Tread (distance between center of tires) 55 1/4 in.

Mobility:

Tire Type (main wheels) Pneumatic
Tire Size (main wheels)

6.00 x 9
Tire Ply (main wheels)

6
Tire Pressure (main wheels)

As specified on sidewall
or at the discretion of the
AGE Branch Chief
Tire Type (retractable)

Solid
Maximum Towing Speed (rough terrain)

10 mph
Maximum Towing Speed (paved surface)

30 mph
Adjustable Height of Lunette by Means of Parking Jack

12 to 26 in.
Braking System

Manual (parking only)
