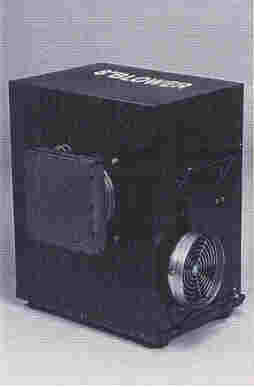

8" Blower PN: 72103300 NSN: 4140-01-382-9925
Breathing Apparatus PN: 92103200
(Click on image to see larger picture)

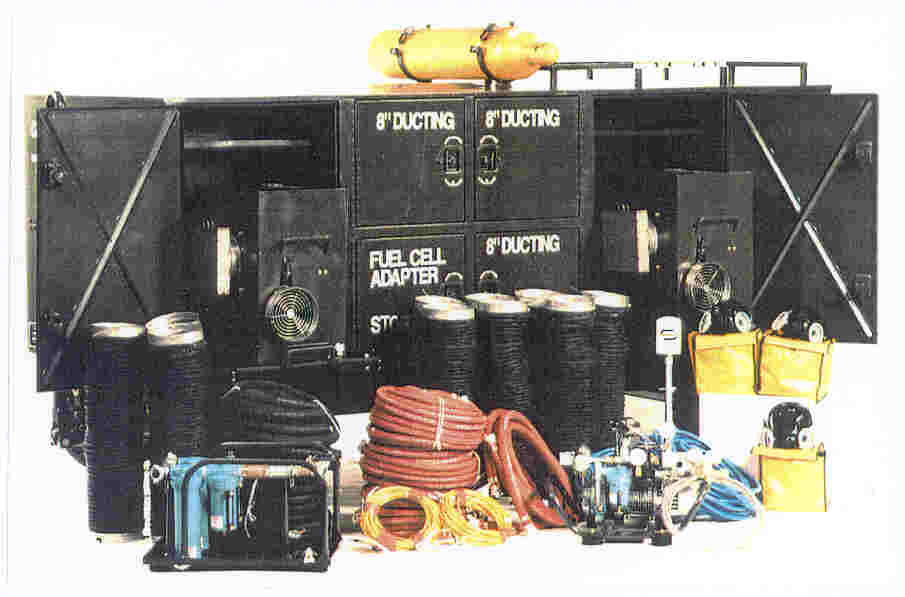

AIRCRAFT FUEL CELL VENTILATION & PERSONNEL RESPIRATOR SYSTEM (BIG WINDY)
Part Number: 92103000
NSN: 1740-01-326-0421

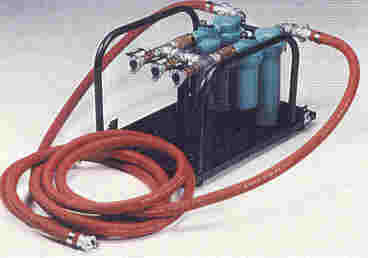

Lubricator PN: 92103400 NSN: 4930-01-383-6410

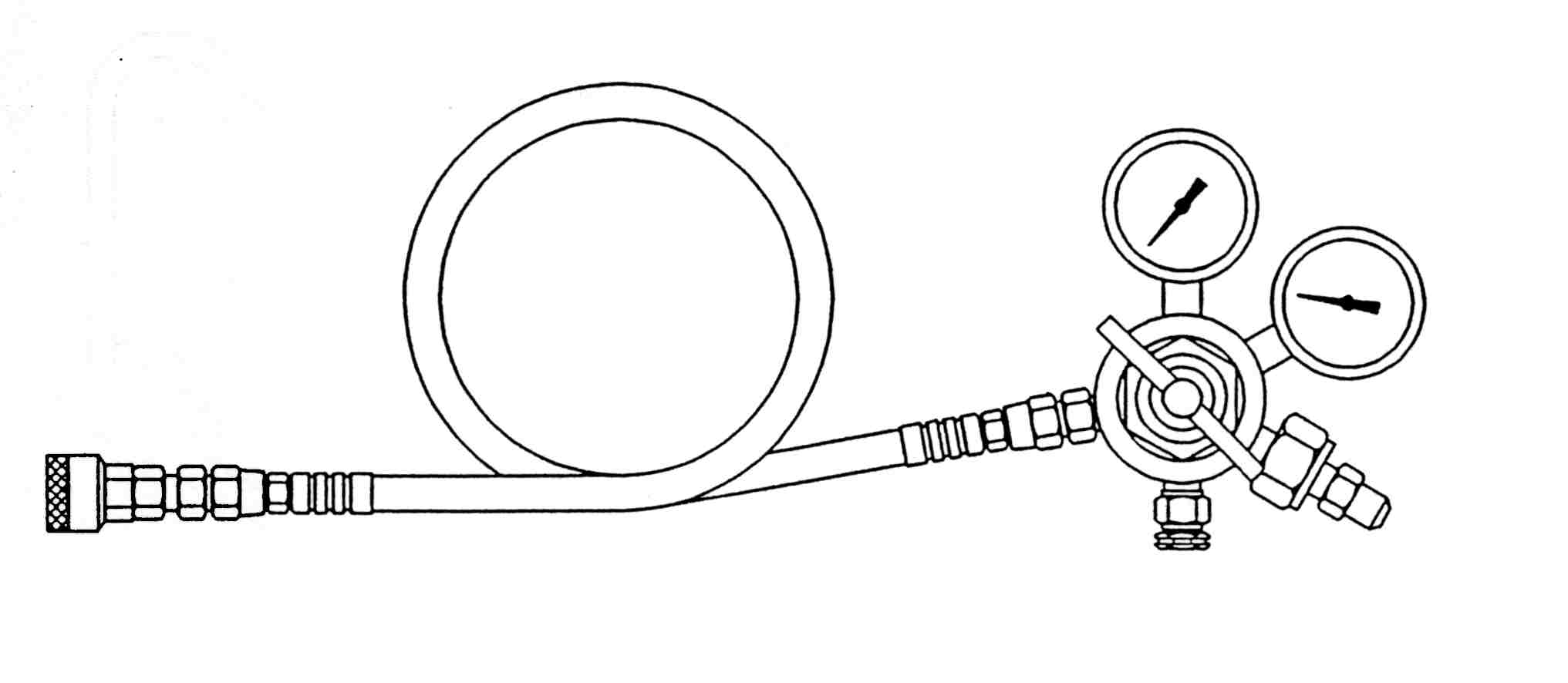

Stand-by Regulator & Hose PN: 92103108 NSN: 4820-01-383-5477
Functional Description: The unit is designed to purge a fuel cell down to acceptable LEL fume levels in a minimal amount of time using pneumatically driven components. In addition, the unit will provide breathing air for three persons simultaneously and is equipped with a Stand-By Air supply in the event of failure of the drive compressor or the Breathing Air Pump. BIG WINDY requires 100 psi at 250 CFM of compressed air.
Technical Description: The unit carries two 8" Blowers each driven by a 3 horsepower pneumatic motor. A Breathing Air Pump provides air to three persons. A pressure sensing valve will automatically switch to a Stand-By Air System in the event of drive compressor failure.
Weight: 2800 lbs.
Dimensions: 127.5" Length X 58.25" Width X 74" Height
